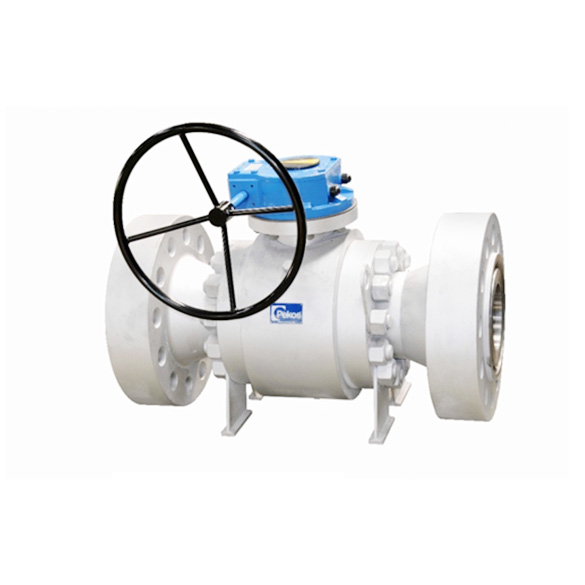

• Ansi Ball Valve
    Size : ¼” to 24”
    Pressure Rating : 150, 300, 600, 800, 900, 1500 and 2500 lbs
    Bore : Full and reduced
    Design : ANSI B16.34
    Face-to-Face : ANSI 16.10, API 6D
    Flanges Form : ANSI B16.5
    Top Flange : ISO 5211
    Leak Test : API 598, API 6D and ISO 5208
    Download

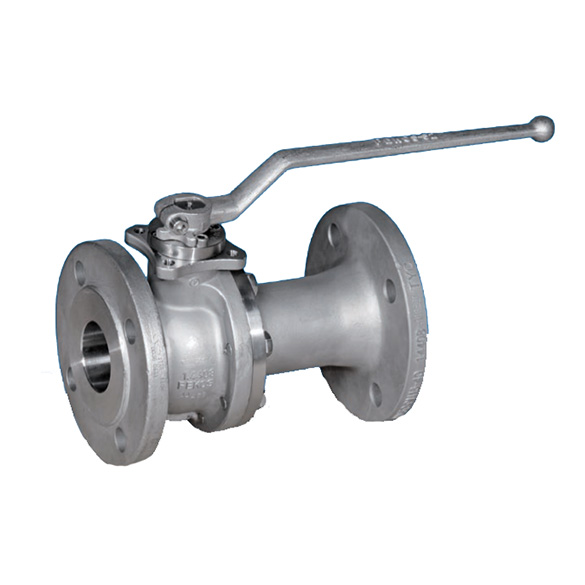

  • Din Ball Valve
    Size : DN 8 to DN 600 mm
    Pressure Rating : PN 10, 16, 25, 40, 63, 100, 160, 250, 320 and 400
    Bore : Full
    Design : DIN 3357, ISO12516, ISO 17292
    Face-to-Face : EN 558, DIN 3202
    Flanges Form : EN 1092-1, ISO 7005
    Flange Drilled : DIN 2501 and ISO 7005
    Top Flange : ISO 5211
    Leak Test : EN 12226-1, DIN 3230, ISO 5208
    Download

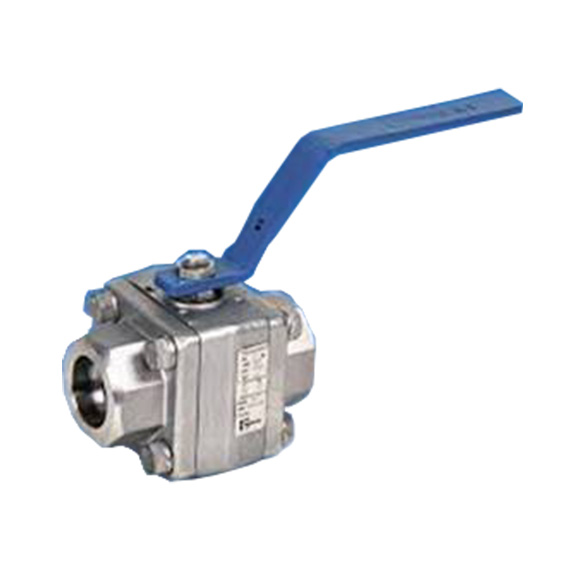

  • Forged Steel Ball Valve
    Size : ANSI ¼” to 4”, DIN 8 to 100 mm
    Pressure Rating : ANSI 400, 600, 800, 1500 and 2500 lbs, PN 64, 100, 138, 250 & 420
    Bore : Full and reduced
    Ends : NPT, BSPP / BSPT, butt weld, socket weld and flanges
    Download

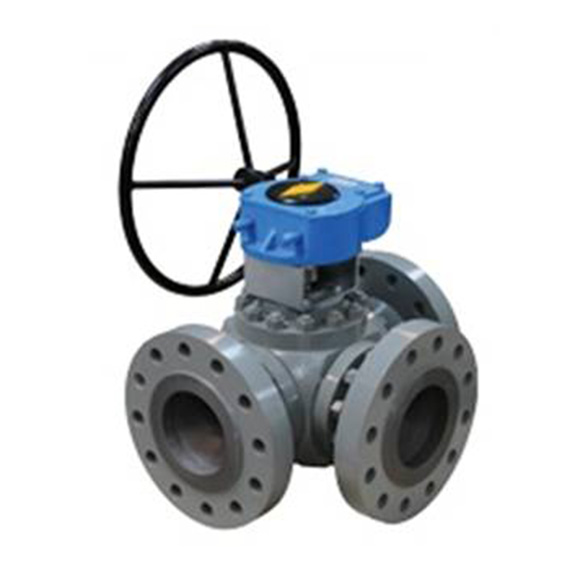

  • 3 & 4 Way Ball Valve
    Size : ANSI 1” to 24”, DIN 25 to 600 mm
    Pressure Rating : ANSI 150, 300, 600, 900, 1500 and 2500 lbs, PN 10, 16, 25, 40, 64, 100, 150, 250 & 420
    Bore : Full and reduced
    Construction : Floating and full trunnion
    Download

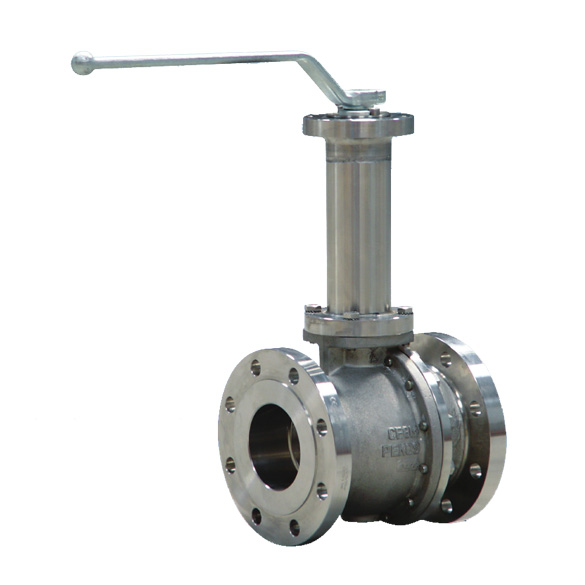

  • Cryogenic Ball Valve
    Size : ANSI ½” to 24”, DIN 15 to 600 mm
    Pressure Rating : ANSI 150, 300, 600, 900, 1500 and 2500 lbs, PN 10, 16, 25, 40, 64, 100, 150, 250 & 420
    Service Temperature : Down to -196°C
    Construction : Floating and guided ball
    Download

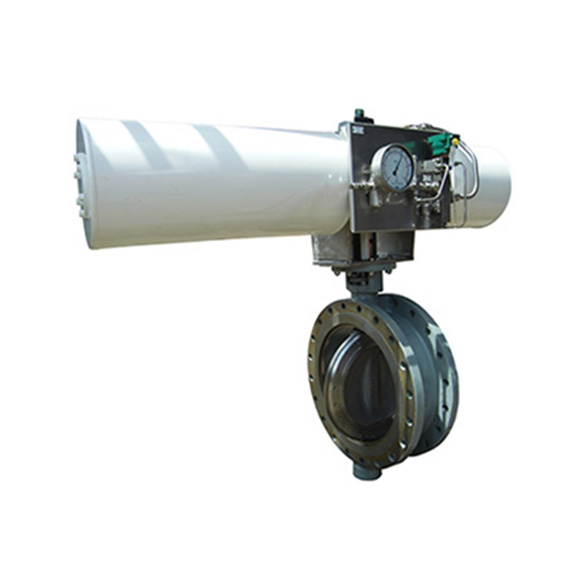

  • Triple Offset Butterfly Valve
    Size : 2” to 54” (50 mm to 1350 mm)
    Body Style : Wafer, Lug and Flanged
    Pressure Rating : ANSI 150, 300, 600 and 900 lbs
    Temperature Range : -46°C to 815°C (-50°F to 1500°F)
    Body Materials : Carbon Steel, Stainless Steel, Ni-Al-Bronze, Hastelloy, Inconel, Titanium
    Disc Material : Carbon Steel, Stainless Steel, Ni-Al-Bronze, Hastelloy, Inconel, Titanium
    Seat Material : 321 SS, 316 SS Hardened, 316 SS Stellite 21 HVOF
    Download

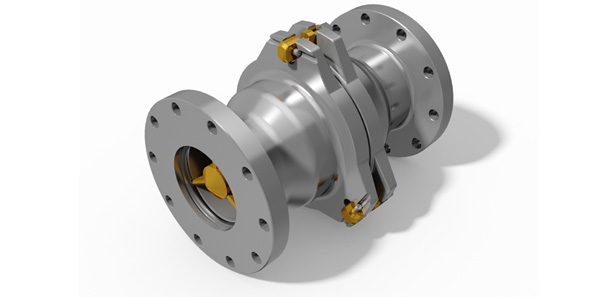

  • Safety Breakaway Couplings
    Size : 1½”, 2½”, 3”, 4”, 6”, 8” or metric equivalents.
    Connections: Flanged variations to most standards including ANSI, BS, DIN, and ISO.Threaded variants also available.
    Materials : Standard material stainless steel. Duplex, Hastelloy and Monel available upon request.
    Seals : Most elastomeric seals type available.
    Download

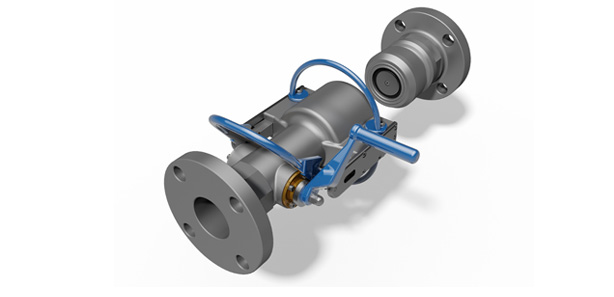

  • Fluiseal Drybreak Couplings
    Size : 2” and 3” or metric equivalents.
    Connections: Flanged variations to most standards including ANSI, BS, DIN, and ISO.Threaded variants also available.
    Materials : Standard material stainless steel. Duplex, Hastelloy and Monel available upon request.
    Seals : Most elastomeric seals type available.
    Protective Dust Caps : Range of dust plugs and caps for added protection of couplings. Rubber or stainless steel available.
    Download

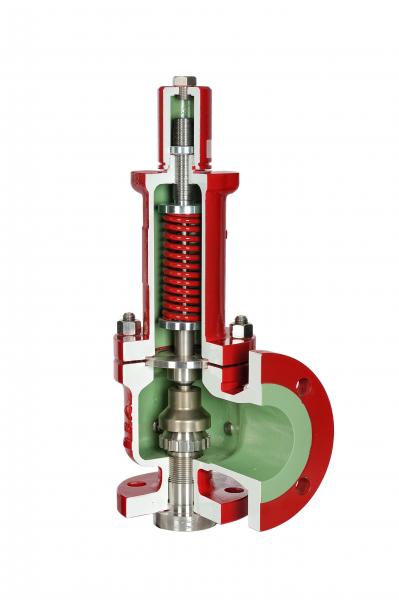

  • Safety Valve - Rapid Opening (Pop Action), Full Nozzle
    Design : EN ISO 4126-1, ASME VIII, API 526, ASME B16.34
    Sizes : 1” x 2” up to 12” x 16” or metric equivalent
    Flanges Rating :  Inlet – ANSI 150 to 2500 lbs
    Outlet – ANSI 150 to 300 lbs
    DIN flanges are also available.
    Materials : Carbon steel, stainless steel and special alloys (Hastelloy, Inconel, Duplex, Super Duplex, etc.).
    Download

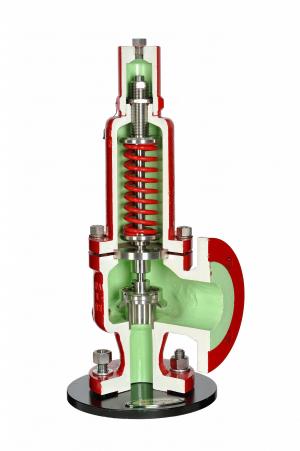

  • Safety Valve - Rapid Opening, Semi Nozzle
    Design : EN ISO 4126-1; ASME VIII Div.1; API 526; ASME B16.34
    AD 2000 MERKBLATT A2
    Sizes : DN 20 x 32 up to DN 150 x 250
    Flanges Rating :  Inlet – PN 16 to 40
    Outlet – PN 16
    ANSI flanges are also available.
    Materials : Carbon steel, stainless steel and special alloys (904L, Hastelloy, etc.).
    Download
