Oil & Gas / LNG

Size : ¼” to 24”
Pressure Rating : 150, 300, 600, 800, 900, 1500 and 2500 lbs
Bore : Full and reduced
Design : ANSI B16.34
Face-to-Face : ANSI 16.10, API 6D
Flanges Form : ANSI B16.5
Top Flange : ISO 5211
Leak Test : API 598, API 6D and ISO 5208

Size : DN 8 to DN 600 mm
Pressure Rating : PN 10, 16, 25, 40, 63, 100, 160, 250, 320 and 400
Bore : Full
Design : DIN 3357, ISO12516, ISO 17292
Face-to-Face : EN 558, DIN 3202
Flanges Form : EN 1092-1, ISO 7005
Flange Drilled : DIN 2501 and ISO 7005
Top Flange : ISO 5211
Leak Test : EN 12226-1, DIN 3230, ISO 5208

Size : ANSI ¼” to 4”, DIN 8 to 100 mm
Pressure Rating : ANSI 400, 600, 800, 1500 and 2500 lbs, PN 64, 100, 138, 250 & 420
Bore : Full and reduced
Ends : NPT, BSPP / BSPT, butt weld, socket weld and flanges

Size : ANSI 1” to 24”, DIN 25 to 600 mm
Pressure Rating : ANSI 150, 300, 600, 900, 1500 and 2500 lbs, PN 10, 16, 25, 40, 64, 100, 150, 250 & 420
Bore : Full and reduced
Construction : Floating and full trunnion

Size : ANSI ½” to 24”, DIN 15 to 600 mm
Pressure Rating : ANSI 150, 300, 600, 900, 1500 and 2500 lbs, PN 10, 16, 25, 40, 64, 100, 150, 250 & 420
Service Temperature : Down to -196°C
Construction : Floating and guided ball

Size : 2” to 54” (50 mm to 1350 mm)
Body Style : Wafer, Lug and Flanged
Pressure Rating : ANSI 150, 300, 600 and 900 lbs
Temperature Range : -46°C to 815°C (-50°F to 1500°F)
Body Materials : Carbon Steel, Stainless Steel, Ni-Al-Bronze, Hastelloy, Inconel, Titanium
Disc Material : Carbon Steel, Stainless Steel, Ni-Al-Bronze, Hastelloy, Inconel, Titanium
Seat Material : 321 SS, 316 SS Hardened, 316 SS Stellite 21 HVOF

Size : 1½”, 2½”, 3”, 4”, 6”, 8” or metric equivalents.
Connections: Flanged variations to most standards including ANSI, BS, DIN, and ISO.Threaded variants also available.
Materials : Standard material stainless steel. Duplex, Hastelloy and Monel available upon request.
Seals : Most elastomeric seals type available.

Size : 2” and 3” or metric equivalents.
Connections: Flanged variations to most standards including ANSI, BS, DIN, and ISO.Threaded variants also available.
Materials : Standard material stainless steel. Duplex, Hastelloy and Monel available upon request.
Seals : Most elastomeric seals type available.
Protective Dust Caps : Range of dust plugs and caps for added protection of couplings. Rubber or stainless steel available.

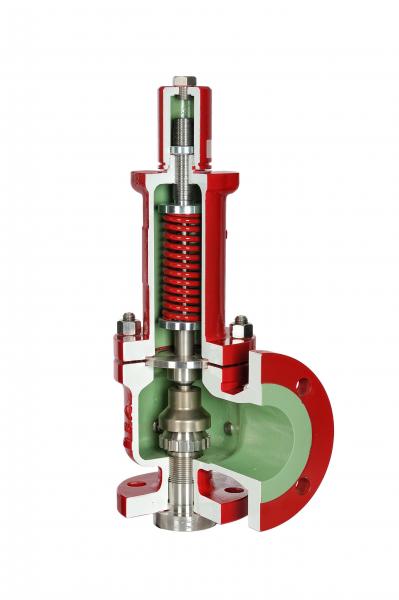

Design : EN ISO 4126-1, ASME VIII, API 526, ASME B16.34
Sizes : 1” x 2” up to 12” x 16” or metric equivalent
Flanges Rating :  Inlet – ANSI 150 to 2500 lbs
Outlet – ANSI 150 to 300 lbs
DIN flanges are also available.
Materials : Carbon steel, stainless steel and special alloys (Hastelloy, Inconel, Duplex, Super Duplex, etc.).

Design : EN ISO 4126-1; ASME VIII Div.1; API 526; ASME B16.34
AD 2000 MERKBLATT A2
Sizes : DN 20 x 32 up to DN 150 x 250
Flanges Rating :  Inlet – PN 16 to 40
Outlet – PN 16
ANSI flanges are also available.
Materials : Carbon steel, stainless steel and special alloys (904L, Hastelloy, etc.).
