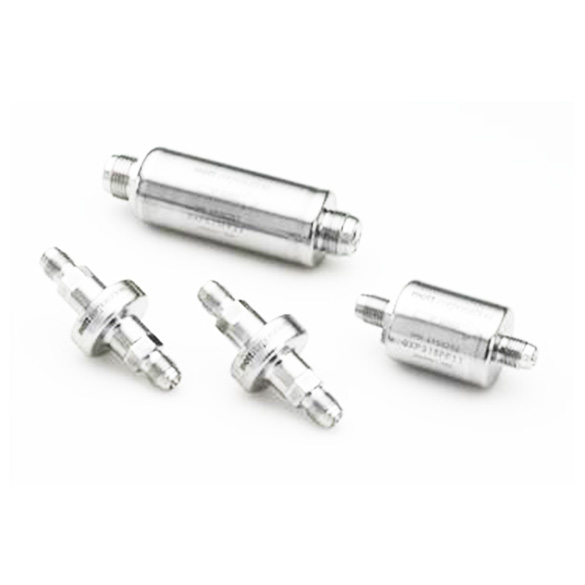

• XP Series Gas Filter
    Model : XP
    Material : Nickel, Stainless Steel
    Size : 1/4" MVCR, 3/8" MVCR
    Removal Size : 0.003μm
    Max. Inlet Pressure : 3000psi
    Max. Differential Pressure : 500psi Max. Flow Rate : 60SLPM, 100SLPM, 160SLPM, 300SLPM
    Download

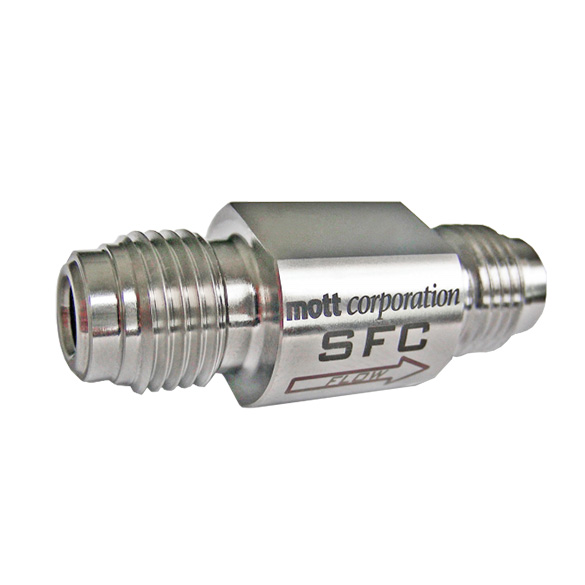

  • Static Flow Controller
    Model : SFC
    Material : Wetted Material: 316L SS
    Size : 1/4" Face Seal / IGS 1.125" C-Seal
    Removal Size : -
    Max. Inlet Pressure : 1500psi
    Max. Differential Pressure : 1500psi Max. Flow Rate : 1 sccm to 40 slpm
    Download

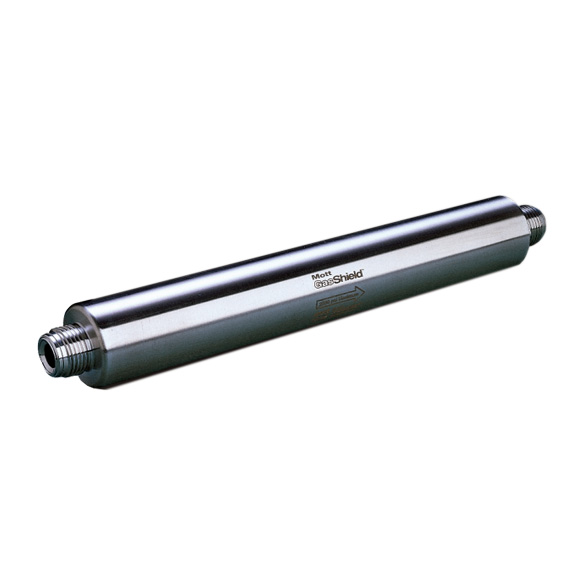

  • High Flow POU Gas Filter
    Model : GSP
    Material : Nickel
    Size : 1/4" VCR, 1/2" VCR
    Removal Size : 0.003μm
    Max. Inlet Pressure : 2500psi
    Max. Differential Pressure : 500psi
    Max. Flow Rate : 80SLPM, 120SLPM, 150SPLM, 250SLPM, 400SLPM, 600SLPM
    Download

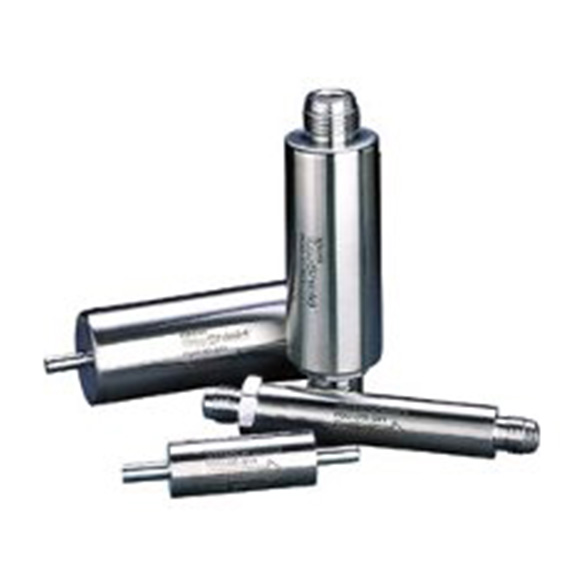

  • Point-Of-Use Gas Filter
    Model : Stainless Steel POU
    Material : 316L SS
    Size : 1/4" MVCR, 1/4" Tube Stub, 3/8" MVCR, 1/2" MVCR
    Removal Size : 0.003μm
    Max. Inlet Pressure : 3750psi, 2500psi
    Max. Differential Pressure : 1000psi
    Max. Flow Rate : 10SLPM, 30SLPM, 60SPLM, 150SLPM, 300SLPM
    Download
  • Point-Of-Use Gas Filter
    Model : Nickel POU
    Material : Nickel
    Size : 1/4" MVCR, 1/4" Tube Stub
    Removal Size : 0.003μm
    Max. Inlet Pressure : 3750psi, 2500psi
    Max. Differential Pressure : 1000psi
    Max. Flow Rate : 30SLPM, 100SLPM
    Download
  • Point-Of-Use Gas Filter
    Model : Hastelloy POU
    Material : Hastelloy C-22
    Size : 1/4" MVCR
    Removal Size : 0.003μm
    Max. Inlet Pressure : 3750psi
    Max. Differential Pressure : 1000psi
    Max. Flow Rate : 8 SLPM, 45SLPM,100 SLPM
    Download

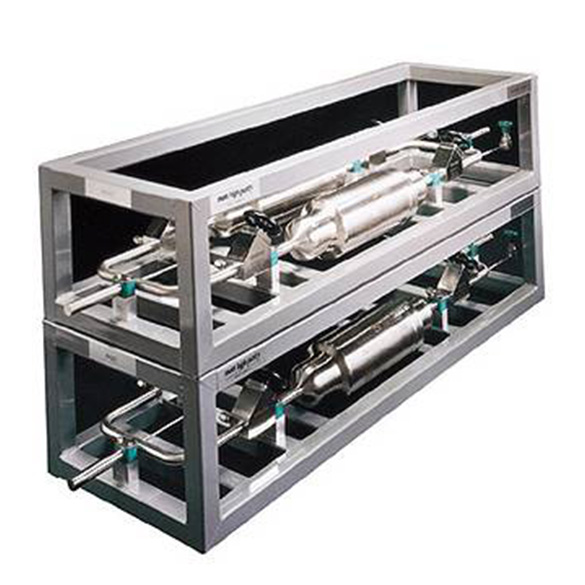

  • Bulk Filter
    Model : BGF
    Material : Nickel
    Size : 1" to 6" Tube Stub
    Removal Size : 0.003μm
    Max. Inlet Pressure : 650psi, 400psi
    Max. Differential Pressure : 250psi
    Max. Flow Rate : 4,000SLPM, 6500SLPM, 16,000SLPM, 25,000SLPM
    Download
  • Utility Line Filter
    Model : GSP1500
    Material : Nickel
    Size : 1/2"Compression, 1/2" VCR, 1/2" Tube Stub, 3/4" Compression, 3/4" VCR, 3/4" Tube Stub, 1" VCR, 1" Tube Stub
    Removal Size : 0.003μm
    Max. Inlet Pressure : 650psi
    Max. Differential Pressure : 250psi
    Max. Flow Rate : 1,500SLPM
    Download
