Metal Diphragm Shut Off Valve

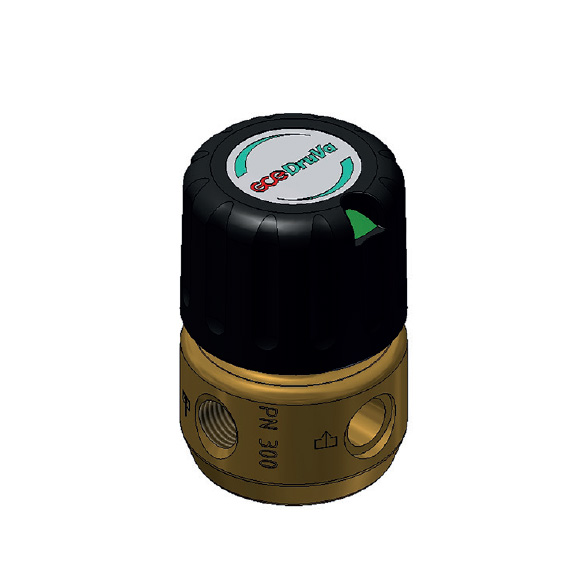

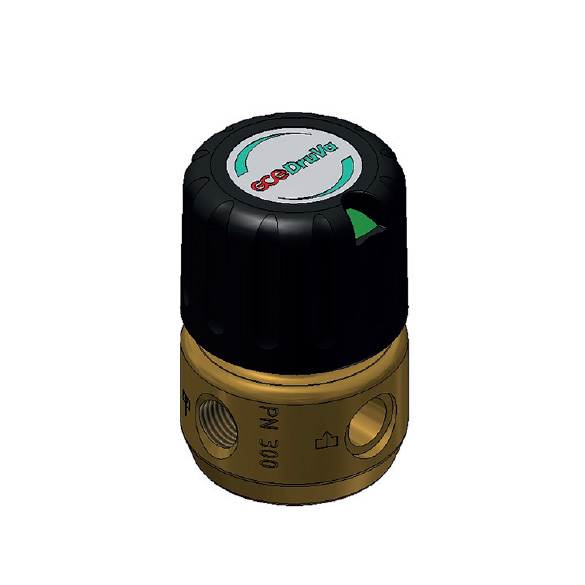

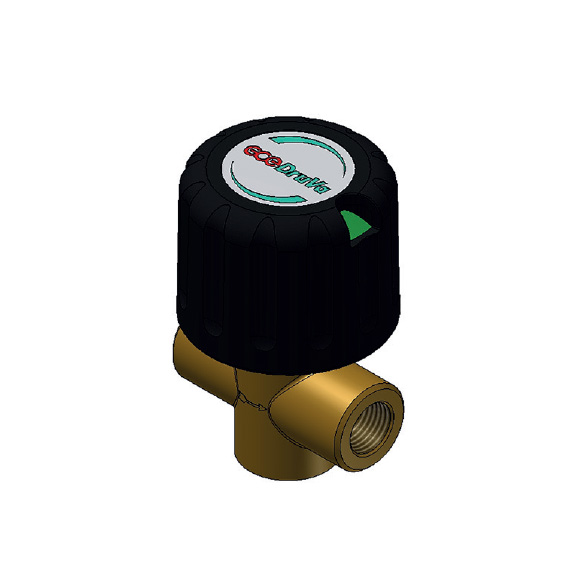

Model	VTLA	VTLI	VTLF
More Details	Download	Download	Download
Design	2-port valve 1 x inlet; 1 x outlet	4-port valve 3 x inlet; 1 x outlet	4-port valve 1 x inlet; 3 x outlet
Working Temperature	-20°C to + 60°C
Inlet/Outlet Ports	NPT 1/4" female
Max. Working Pressure	300 bar
Weight	0.30 kg	0.63 kg	0.62 kg
Material Gas Wetted Parts
Valve Body	Brass (2.0401.26)
Valve Diaphragm	2 x Elgiloy (2.4711)	1 x Hastelloy (2.4819), 1 x Elgiloy (2.4711)
Valve Seat	PCTFE
Valve Poppet	Brass (2.0401.26)
