Ultra High Purity

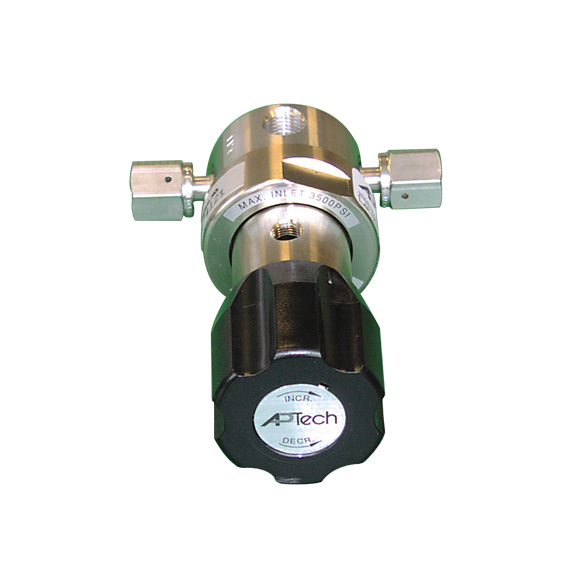

  • Single Stage Regulator
    Series : AP
    Model : 1000
    Material : SS316L VAR
    Size & Connection : 1/4" VCR'', 3/8"VCR
    Inlet Pressure PSI/BAR : 3500/241
    Outlet Pressure PSI/BAR : 150/10
    Cv : 0.09/0.15
    Download

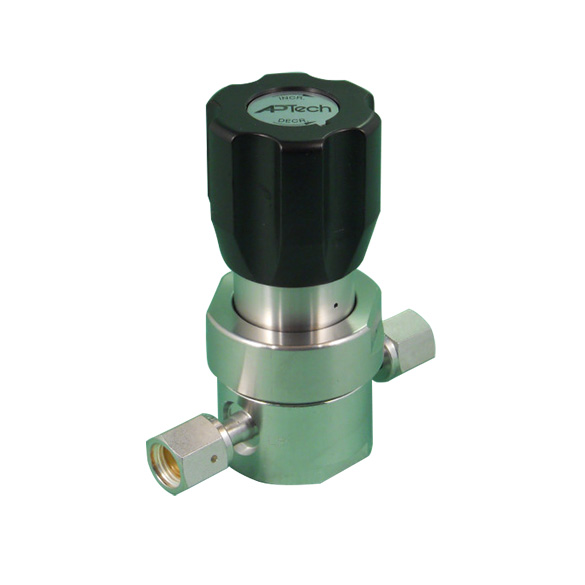

  • Single Stage Regulator
    Series : AZ
    Model : 1000
    Material : SS316L
    Size & Connection : 1/4" VCR'', 3/8"VCR
    Inlet Pressure PSI/BAR : 3500/241
    Outlet Pressure PSI/BAR : 150/10
    Cv : 0.09/0.15
    Download

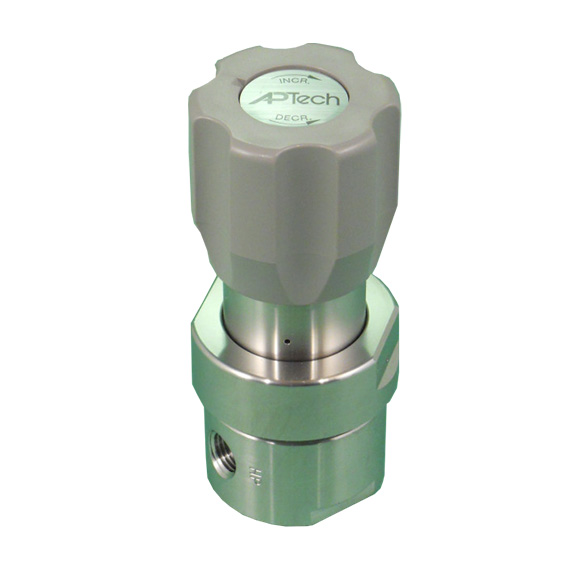

  • Single Stage Regulator
    Series : AK
    Model : 1000
    Material : SS316, Brass
    Size & Connection : 1/4" NPT'', 1/4" and 3/8" Compression
    Inlet Pressure PSI/BAR : 3500/241
    Outlet Pressure PSI/BAR : 500/35
    Cv : 0.09/0.15
    Download

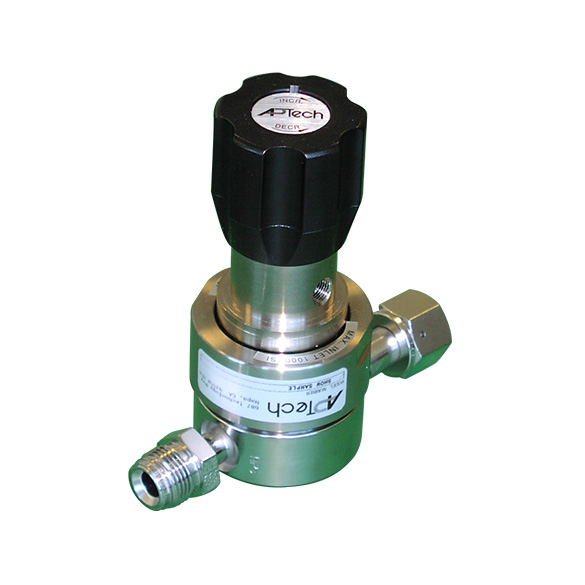

  • Single Stage Tied Diaphragm Regulator
    Series : AP
    Model : 1200
    Material : SS316L VAR
    Size & Connection : 1/4'',3/8'',1/2'',3/4" VCR
    Inlet Pressure PSI/BAR : 1700/117, 3000/207 opt
    Outlet Pressure PSI/BAR : 250/17
    Cv : 0.9/1.1
    Download

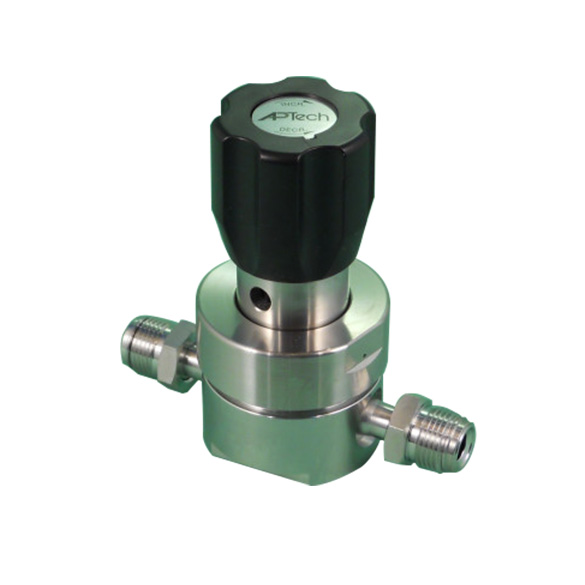

  • Single Stage Tied Diaphragm Regulator
    Series : AZ
    Model : 1200
    Material : SS316L
    Size & Connection : 1/4'', 3/8'', 1/2' VCR
    Inlet Pressure PSI/BAR : 1700/117, 3000/207 opt
    Outlet Pressure PSI/BAR : 150/10
    Cv : 0.9/1.1
    Download

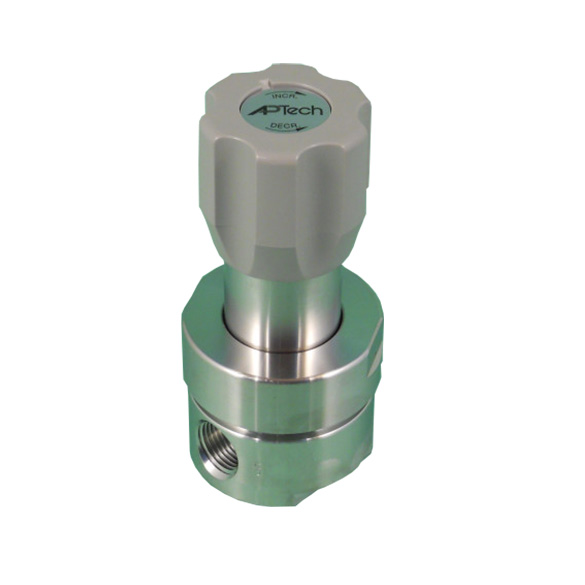

  • Single Stage Tied Diaphragm Regulator
    Series : AK
    Model : 1200
    Material : SS316, Brass
    Size & Connection : 1/4'', 3/8'', 1/2" NPT and Compression
    Inlet Pressure PSI/BAR : 1700/117, 3000/207 opt
    Outlet Pressure PSI/BAR : 150/10
    Cv : 0.9/1.1
    Download
  • Single Stage Regulator
    Series : AP
    Model : 1300
    Material : SS316L VAR
    Size & Connection : 1/4'',3/8'',1/2 VCR
    Inlet Pressure PSI/BAR : 300/21
    Outlet Pressure PSI/BAR : 150/10
    Cv : 1.1
    Download

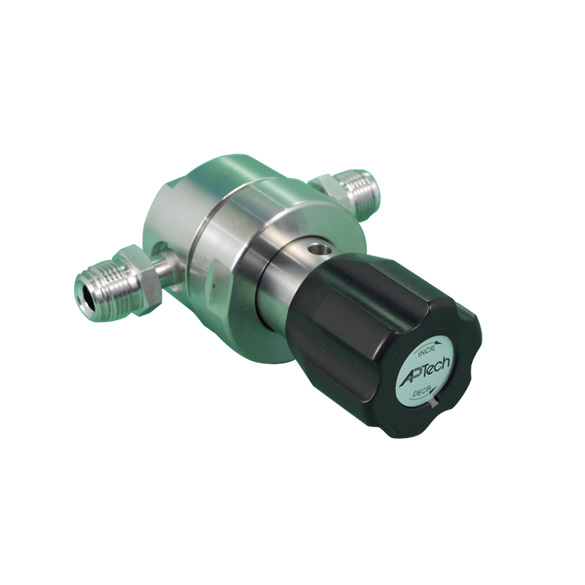

  • Single Stage Regulator
    Series : AZ
    Model : 1300
    Material : SS316L
    Size & Connection : 1/4'',3/8'',1/2 VCR
    Inlet Pressure PSI/BAR : 300/21
    Outlet Pressure PSI/BAR : 150/10
    Cv : 1.1
    Download

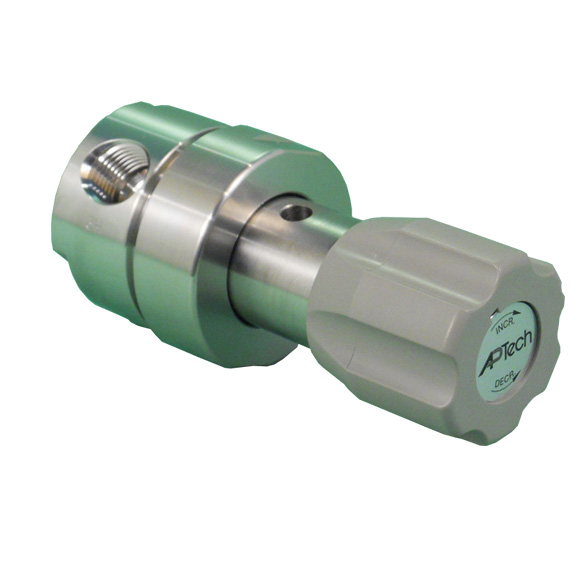

  • Single Stage Regulator
    Series : AK
    Model : 1300
    Material : SS316L, Brass
    Size & Connection : 1/4'',3/8'',1/2" NPT and Compression
    Inlet Pressure PSI/BAR : 300/21
    Outlet Pressure PSI/BAR : 150/10
    Cv : 1.1
    Download

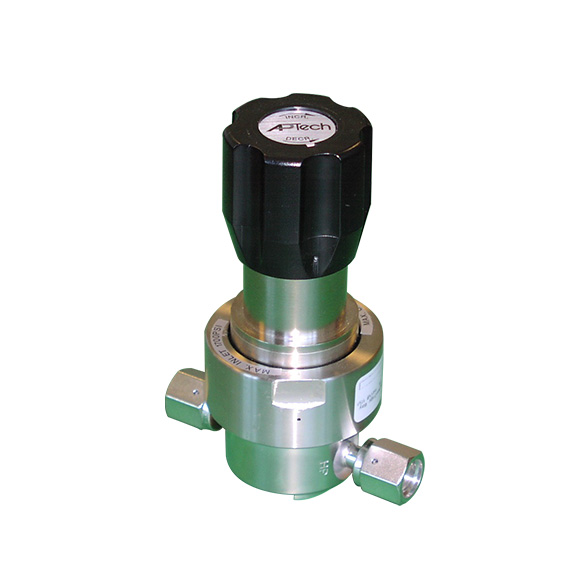

  • Single Stage Tied Diaphragm Regulator
    Series : AP
    Model : 1400T
    Material : SS316 VAR
    Size & Connection : 1/4'',3/8'',1/2 VCR
    Inlet Pressure PSI/BAR : 2300/159, 3000/207, opt
    Outlet Pressure PSI/BAR : 150/10
    Cv : 0.45
    Download

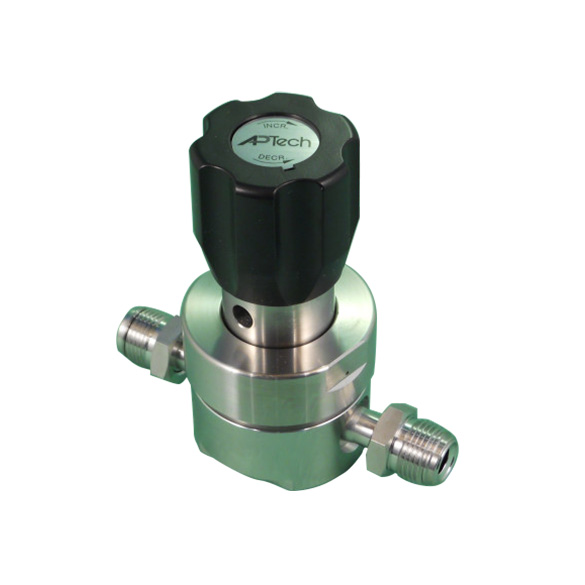

  • Single Stage Tied Diaphragm Regulator
    Series : AZ
    Model : 1400T
    Material : SS316L
    Size & Connection : 1/4'',3/8'',1/2 VCR
    Inlet Pressure PSI/BAR : 2300/159, 3000/207, opt
    Outlet Pressure PSI/BAR : 150/10
    Cv : 0.45
    Download

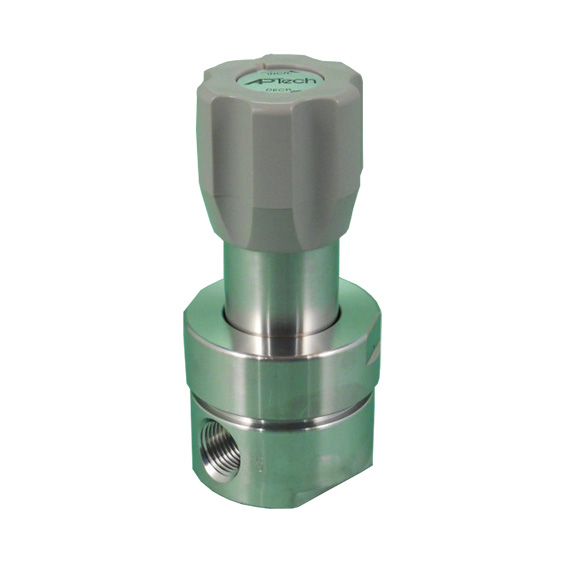

  • Single Stage Tied Diaphragm Regulator
    Series : AK
    Model : 1400T
    Material : SS316, Brass
    Size & Connection : 1/4'',3/8'',1/2" NPT and Compression
    Inlet Pressure PSI/BAR : 2300/159, 3000/207, opt
    Outlet Pressure PSI/BAR : 150/10
    Cv : 0.45
    Download

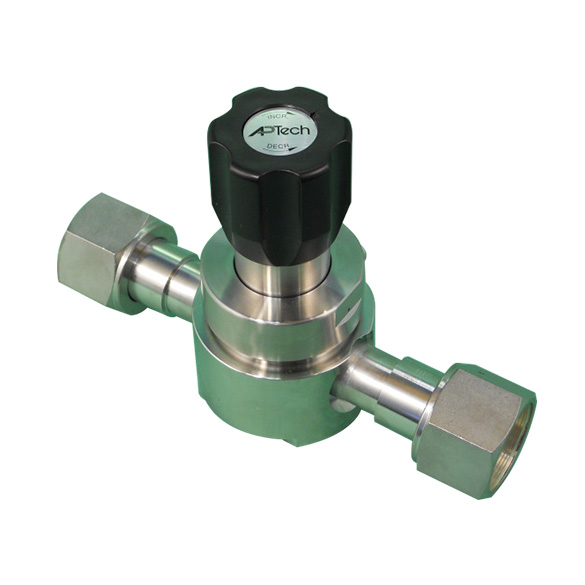

  • Single Stage Regulator
    Series : AZ
    Model : 9200
    Material : SS316 L
    Size & Connection : 3/4", 1" VCR
    Inlet Pressure PSI/BAR : 300/21
    Outlet Pressure PSI/BAR : 150/10
    Cv : 1.6
    Download

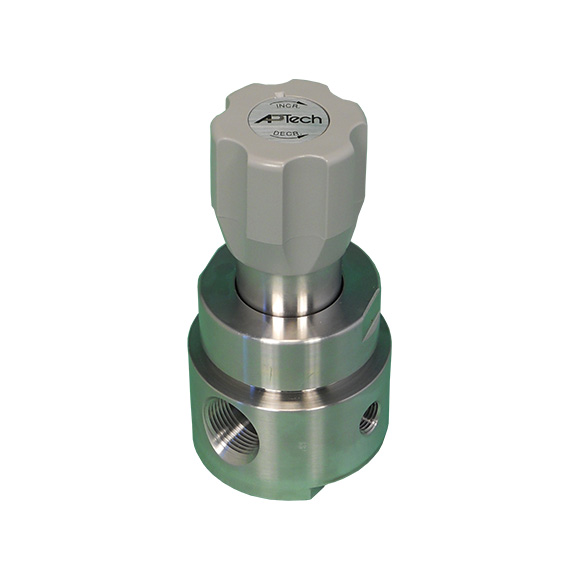

  • Single Stage Regulator
    Series : AK
    Model : 9200
    Material : SS316
    Size & Connection : 3/4" NPT or Compression
    Inlet Pressure PSI/BAR : 300/21
    Outlet Pressure PSI/BAR : 150/10
    Cv : 1.6
    Download

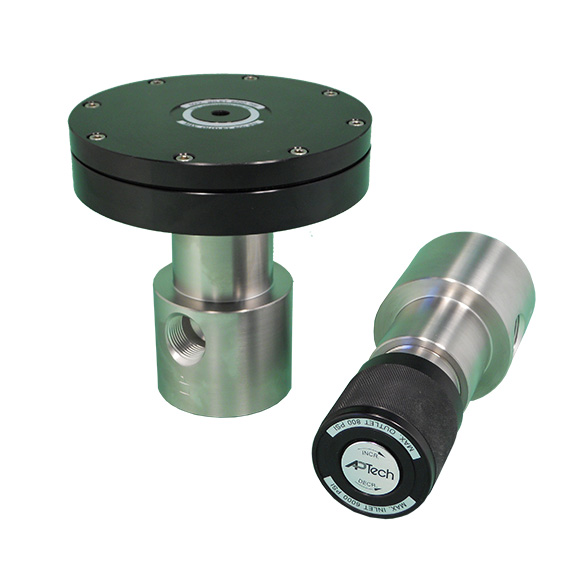

  • Single Stage, High Flow, High Pressure Regulator
    Series : KT
    Model : 12
    Material : SS, 300 Series
    Size & Connection : 1/2", 3/4" NPT
    Inlet Pressure PSI/BAR : 6000/414
    Outlet Pressure PSI/BAR : 2500/172
    Cv : 0.8/2.0
    Download
  • Single Stage, High Flow, High Pressure Regulator
    Series : KT
    Model : 12
    Material : Brass
    Size & Connection : 1/2", 3/4" NPT
    Inlet Pressure PSI/BAR : 5000/345
    Outlet Pressure PSI/BAR : 2500/172
    Cv : 0.8/2.0
    Download

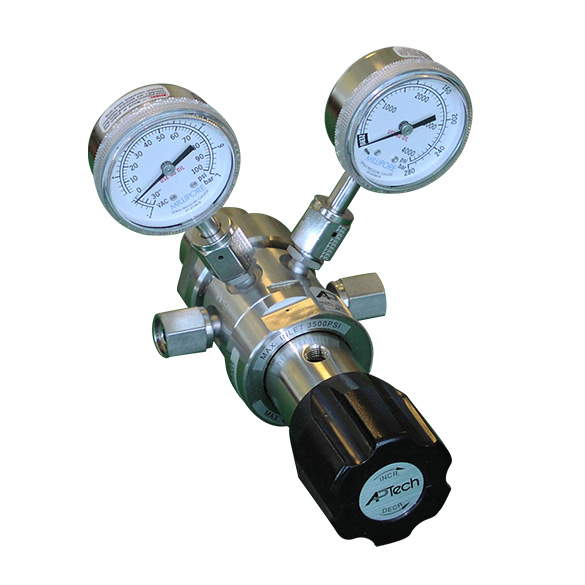

  • Two Stage Regulator
    Series : AP
    Model : 1700
    Material : SS316 L
    Size & Connection : 1/4", 3/8" VCR
    Inlet Pressure PSI/BAR : 3500/241, 4500/310 opt
    Outlet Pressure PSI/BAR : 100/7, 200/14
    Cv : 0.05/0.07
    Download

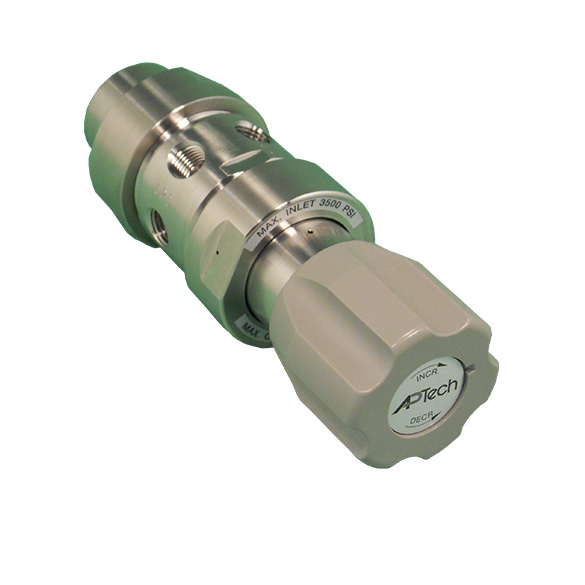

  • Two Stage Regulator
    Series : AK
    Model : 1700
    Material : SS316, Brass
    Size & Connection : 1/4" NPT or Compression
    Inlet Pressure PSI/BAR : 3500/241, 4500/310 opt
    Outlet Pressure PSI/BAR : 100/7, 200/14
    Cv : 0.05/0.07
    Download

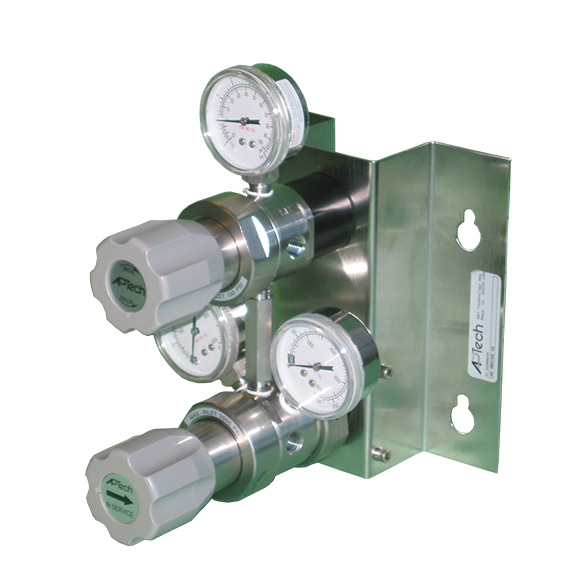

  • Crossover Manifold
    Series : AK
    Model : M80
    Material : SS316, Brass
    Size & Connection : 1/4" NPT
    Inlet Pressure PSI/BAR : 3500/241
    Outlet Pressure PSI/BAR : 250/17
    Cv : 0.05
    Download

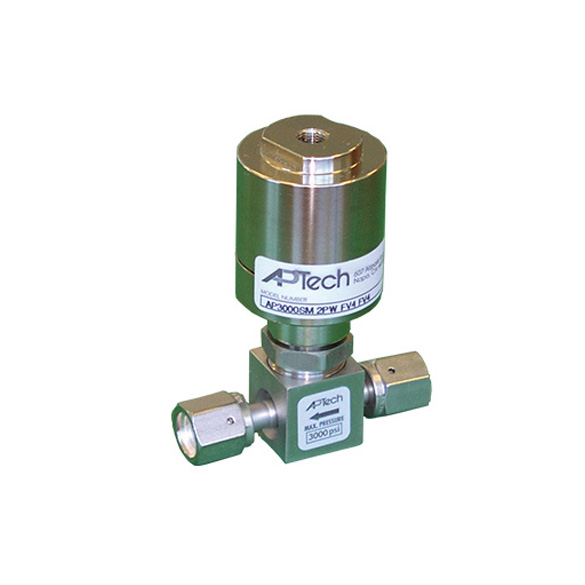

  • 1/4" Pneumatic Diaphragm Valve
    Series : AP
    Model : 3550
    Material : SS 316L VAR
    Pressure Rating (PSIG/BAR): 1/4", 3/8" VCR
    Outlet Pressure PSI/BAR : 300/21
    Cv : 0.29
    Type Actuation : NC
    Download

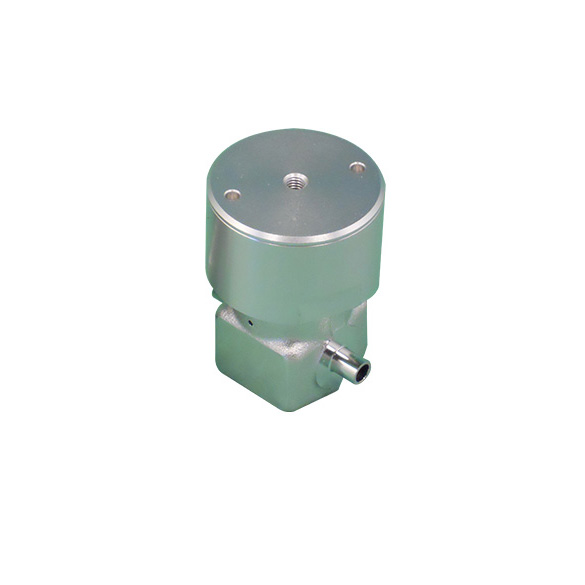

  • 1/4" Pneumatic Diaphragm Valve
    Series : AZ
    Model : 3550
    Material : SS 316L
    Pressure Rating (PSIG/BAR): 1/4", 3/8" VCR
    Outlet Pressure PSI/BAR : 300/21
    Cv : 0.29
    Type Actuation : NC
    Download

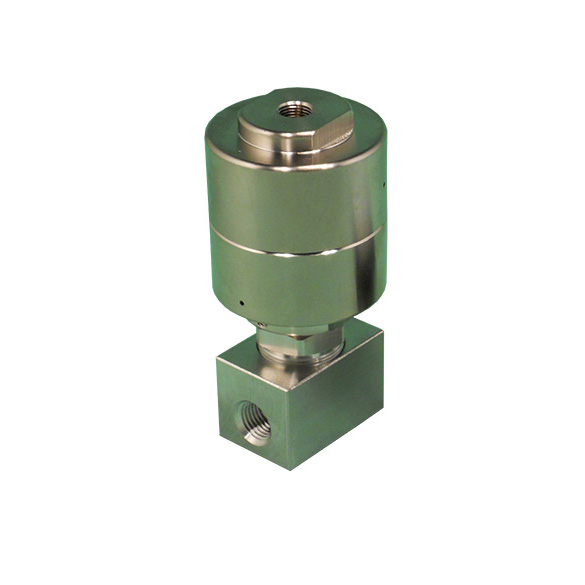

  • 1/4" Pneumatic Diaphragm Valve
    Series : AK
    Model : 3550
    Material : SS 316L, Brass
    Pressure Rating (PSIG/BAR): 1/4 inch compression, NPT or BSPT
    Outlet Pressure PSI/BAR : 300/21
    Cv : 0.29
    Type Actuation : NC
    Download

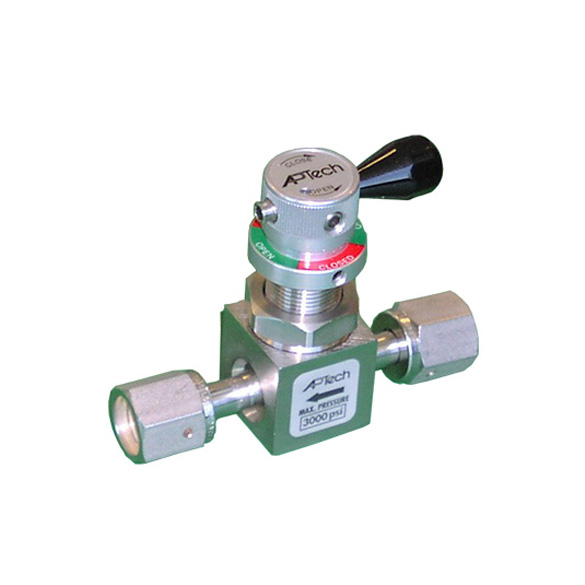

  • 1/4" Manual Diaphragm Valve
    Series : AP
    Model : 3650
    Material : SS 316L VAR
    Pressure Rating (PSIG/BAR): 1/4", 3/8" VCR
    Outlet Pressure PSI/BAR : 3000/207
    Cv : 0.29
    Download

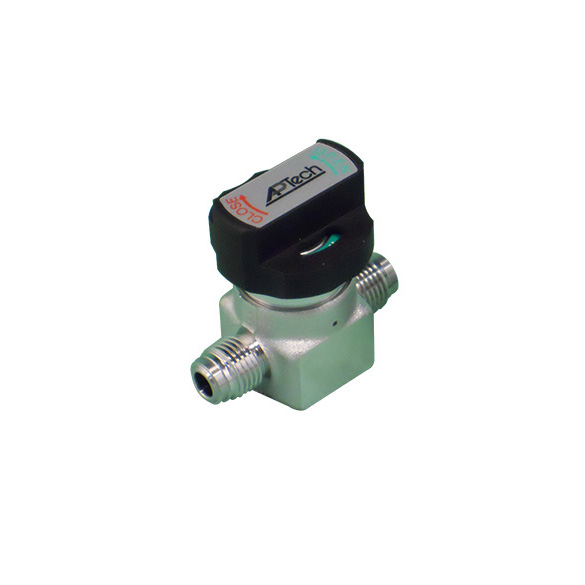

  • 1/4" Manual Diaphragm Valve
    Series : AZ
    Model : 3650
    Material : SS 316L
    Pressure Rating (PSIG/BAR): 1/4", 3/8" VCR
    Outlet Pressure PSI/BAR : 3000/207
    Cv : 0.29
    Type Actuation : Knob, 1/4 turn
    Download
  • 1/4" Manual Diaphragm Valve
    Series : AK
    Model : 3650
    Material : SS316, Brass
    Pressure Rating (PSIG/BAR): 1/4 inch compression, NPT or BSPT
    Outlet Pressure PSI/BAR : 3000/207
    Cv : 0.29
    Type Actuation : Knob, 1/4 turn
    Download
  • 1/2" Pneumatic Diaphragm Valve
    Series : AP
    Model : 3700
    Material : SS 316L VAR
    Pressure Rating (PSIG/BAR): 3/8", 1/2", 3/4" VCR
    Outlet Pressure PSI/BAR : 250/17
    Cv : 2.8
    Type Actuation : NC
    Download

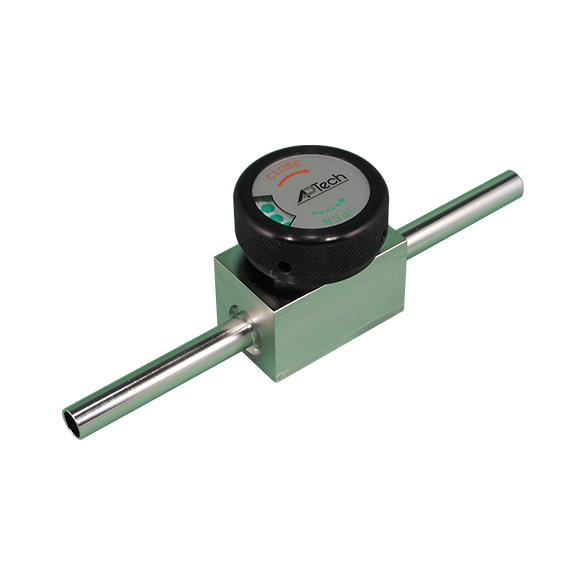

  • 1/2" Manual Diaphragm Valve
    Series : AZ
    Model : 3800
    Material : SS 316L
    Pressure Rating (PSIG/BAR): 3/8", 1/2", 3/4" VCR
    Outlet Pressure PSI/BAR : 250/17
    Cv : 2.8
    Type Actuation : Knob
    Download

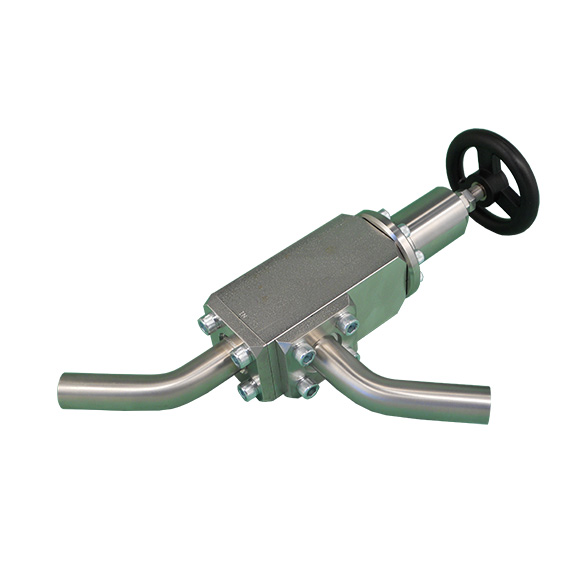

  • 1" Manual Bellows Valve
    Series : BZ
    Model : 91T
    Material : SS 316L
    Pressure Rating (PSIG/BAR): 3/4", 1" VCR and 3/4",1", 1-1/2" tube stub
    Outlet Pressure PSI/BAR : 250/17
    Cv : 20
    Type Actuation : Knob, multi turn
    Download

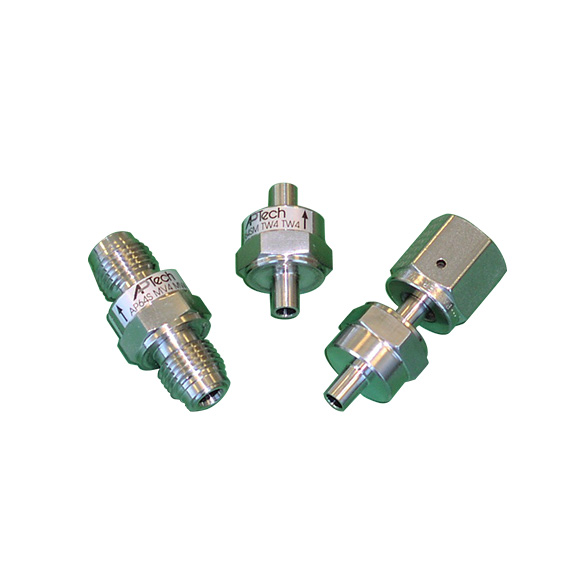

  • Springless All Welded Check Valve
    Series : AP
    Model : 64
    Material : SS 316L VAR
    Pressure Rating (PSIG/BAR): 1/4" VCR
    Outlet Pressure PSI/BAR : 3500/241
    Cv : 0.4 max
    Download

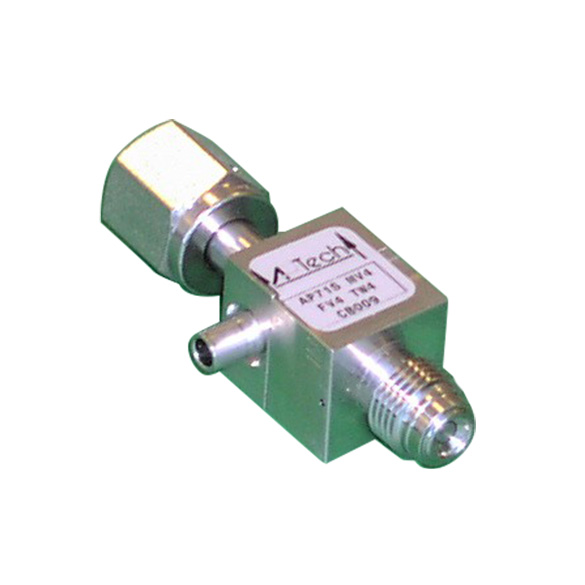

  • Vacuum Generator Module
    Series : AP
    Model : 71
    Material : SS 316L VAR
    Size & Connection : 1/4", 3/8" VCR
    Vaccum Efficiency in Hg/Torr : 26/100
    Download

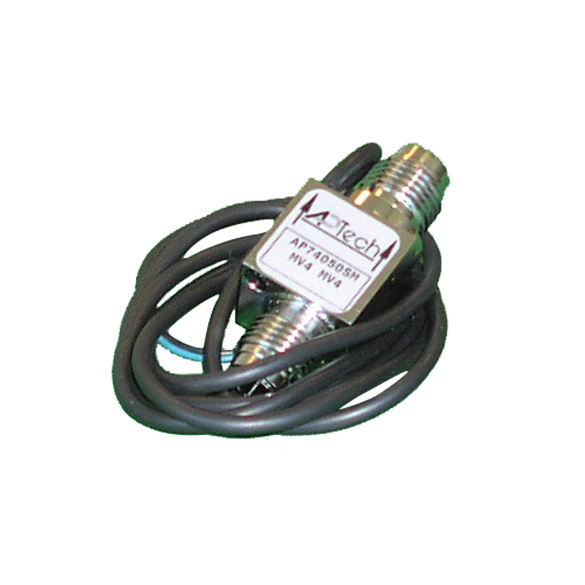

  • Excess Flow Switch
    Series : AP
    Model : 74
    Material : SS 316L VAR
    Size & Connection : 1/4" VCR
    Pressure Max (psig/bar): 3500/267
    Download
